General Marine Bluewater 22'
Center Console
[ngg_images source="galleries" container_ids="18" display_type="photocrati-nextgen_basic_thumbnails" override_thumbnail_settings="1" thumbnail_width="340" thumbnail_height="260" thumbnail_crop="1" images_per_page="21" number_of_columns="3" ajax_pagination="0" show_all_in_lightbox="0" use_imagebrowser_effect="0" show_slideshow_link="0" slideshow_link_text="[View As Slideshow]" template="/home/gmarine/public_html/wp-content/plugins/nextgen-gallery/products/photocrati_nextgen/modules/ngglegacy/view/gallery.php" order_by="sortorder" order_direction="ASC" returns="included" maximum_entity_count="500"]

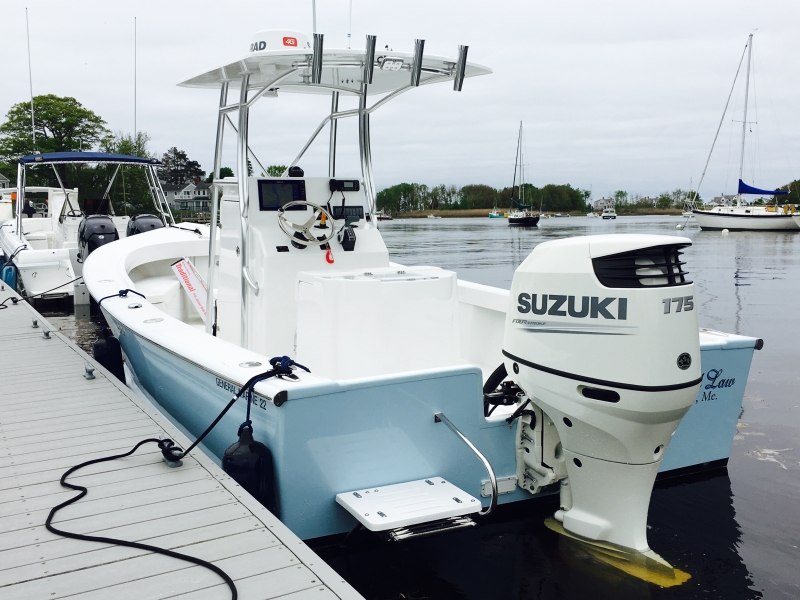

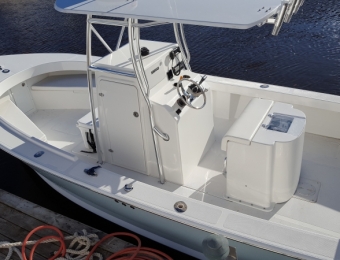

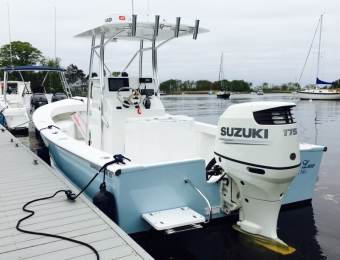

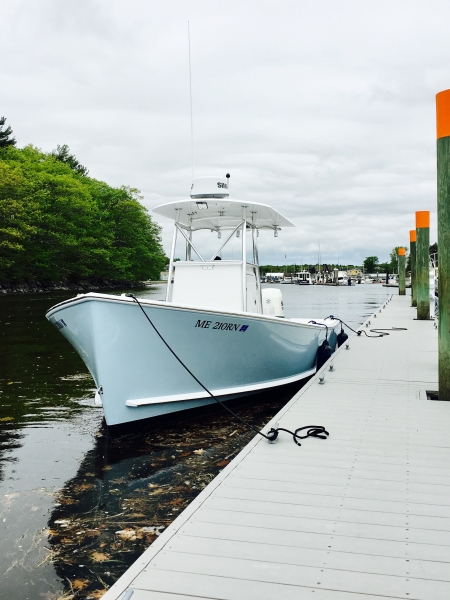

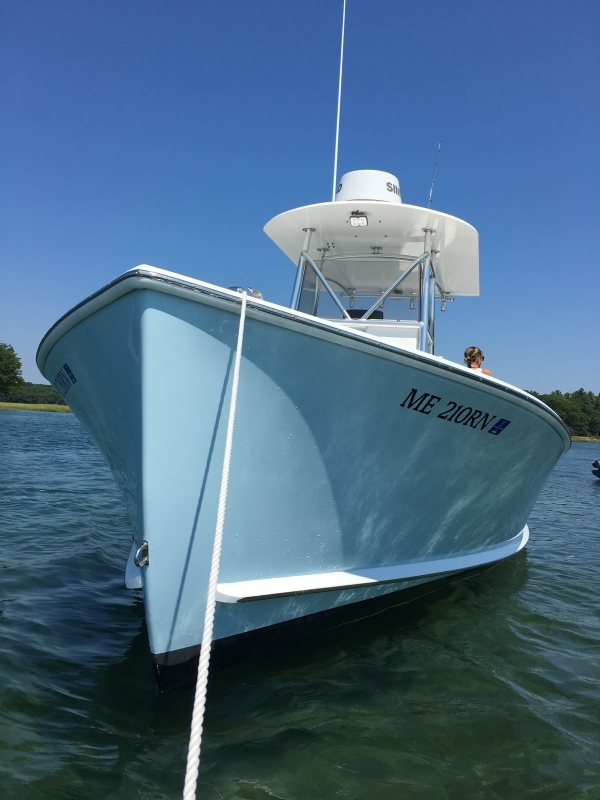

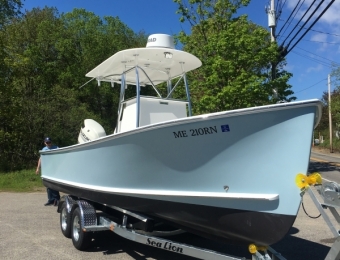

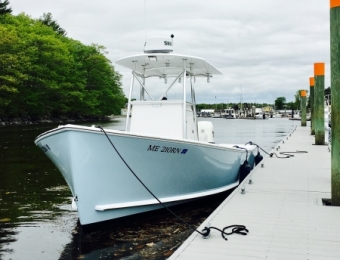

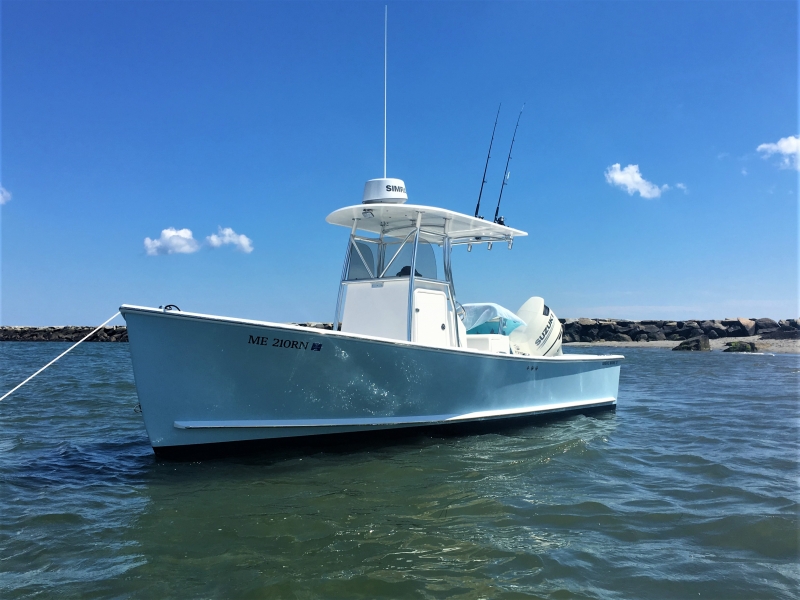

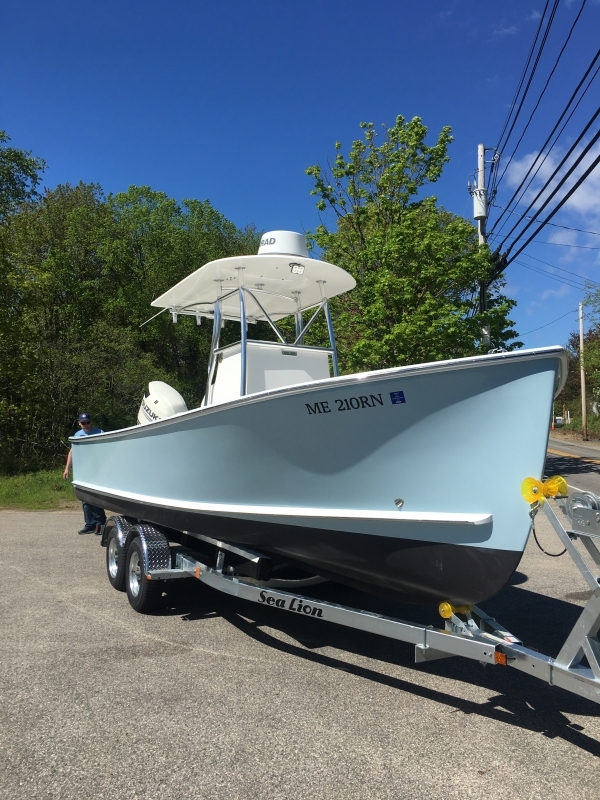

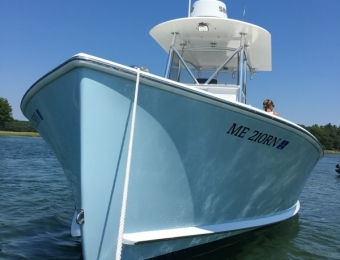

General Marine 22'
Commercial Center Console
The General Marine 22 is a classic downeast hull design that incorporates the latest in modern building methods. It’s fully molded, modular, foam filled stringer system and penske board reinforced transom offers the stiffest, strongest method for reinforcing the hull, sole deck and transom, and because it’s all composite you don’t need to worry about water absorption. The hull comes with hand laid fiberglass, using epoxy based vinyl ester resin.
The 22 boat is built to tough New England standards and comes with a 10 year structural warranty. The General Marine 22 was designed by the legendary Maine lobster boat designer, Calvin Beal. With her 9’ beam and semi displacement design, this boat has unparalleled stability and sea keeping abilities.
Specifications:
Composite fiberglass molded deck system, rolled non-skid.

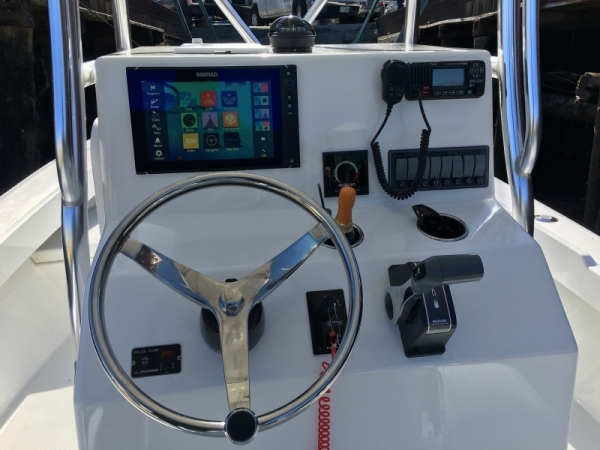

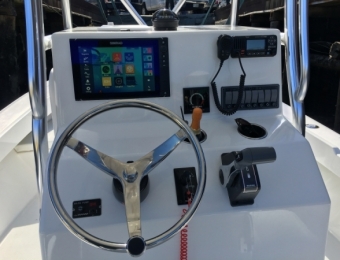

Standard console with seat
Large console with head
Pilot House with head

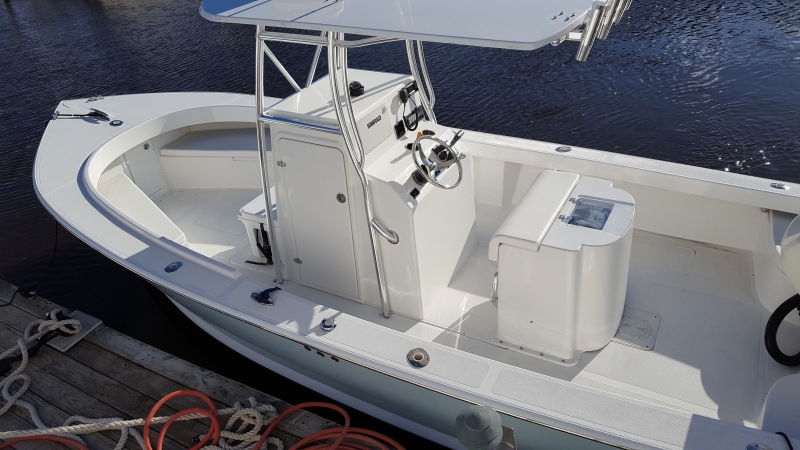

Complete molded fiberglass throughout, molded diamond non-skid decks, forward seat with storage, anchor locker, port and stbd transom seats with storage
and central in deck storage locker available on Bluewater version.
Cabin Cruiser: Full cabin with vee-berth , locker and head below and
dual pedestal seats at the helm.
- LOA: 22'
- Beam: 9'
- Draft (boat only): 12”
- Weight (dry, no engine): 3300 lbs
- Max HP: 200
- Min Hp: 90
- Transom Height: 25”
- Fuel Capacity: 74 gal
- Speed: 32 Kts (max with 150 HP)
24 Kts (cruise with 150 HP)
29 Kts (max with 130 HP)
22 Kts (cruise with 130 HP)
Options:
- Bow Rail
- Spray Rails
- Baitwell System
- Leaning Post
- Pull Up Cleats and Bow Light Upgrade
- Galvanized Roller Trailer

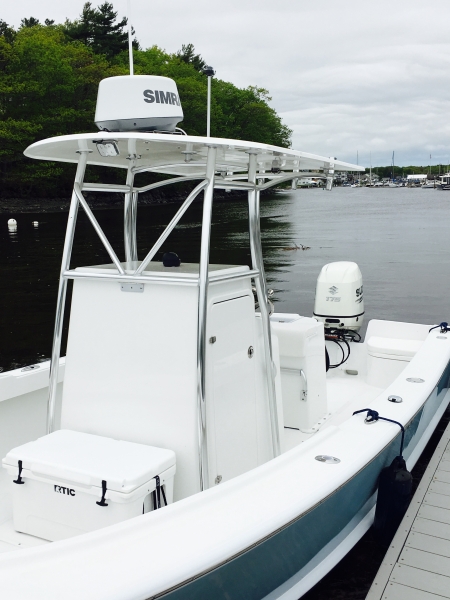

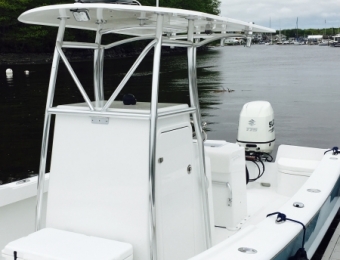

- Tee-Top with Electronics Box, Rocket Launchers
and Aft Spot Light - Frigid Rigid Cooler with cushions
- Cored Hull
- Colored Hul
- Port and Stbd below deck storage compartments
